Trailers
Due
to the success of our Steel Buildings,
we are not building trailers at this time.
If
you landed on this page from a search please click here to visit
our home page:
Run to Home Page
Custom Iron Workers, Inc. began
painting and repairing
horse trailers in 1992. Since we travel
with horses ourselves we were frustrated by not being able to
find the exact trailer to fit our needs. CIW Trailers was born
out of this need. Our trailers contain many unique features to
provide for the safety and comfort of people and horses.
CIW Trailers are stronger and lighter than many of the top
quality aluminum trailers of the same size and equipment. This is
achieved with our unique unibody construction. They are finished
with the highest quality automotive acrylic enamel paint with
hardener added. Our sandblast preparation and 7 coat paint finish
are highly resistant to rust and corrosion.
Due to the increased demand for our products, Custom Iron Workers, Inc. has expanded! The photo above is a bit misleading, as the new shop is twice as big as the old one in the foreground!
Examples: These were custom ordered trailers. We have built trailers ranging from $10,000 bumper pulls to $50,000 32' goosenecks with complete living quarters. Even the bumper pull included 2 Safety Pen corrals, 2- 30 gallon water tanks, pump, batteries, etc. We don't build "cheap" trailers, but our prices are reasonable for what you get.

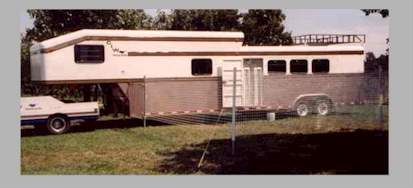

2001
Model Trailer
8'wide,
31' long. 7' tall over horses, (3 horse slant) Living Quarters is
13' on the floor, 10'6" in the upper level (has hay storage
compartment on floor level behind gooseneck.) See enlarged photo
The LQ ceiling is 8' 7", 5' 6" tall in gooseneck walkway. Exterior painted to match 1996 Ford Brown Metallic(light brown) with a gold stripe & white upper section. ---This trailer has about everything you could want. 8,000# oil bath axles, 14 ply rated tires (load range G). drop down windows both sides with drop down safety bars, 2 built in Safety Pens™ with gates, Escape door in front of first horse, mid-tack, larger bedroom windows than pictured here, hayrack, 20' awning, A/C, 4000 Onan portable generator, power inverter, 6 golf car batteries, 100 gallons water storage, exterior hydrant for horses, 2-35 gallon holding tanks, toilet, shower, LP water heater, 12 volt pump, catalytic LP heater, 3 burner range & oven, microwave with hood over range, 11 cubic foot refrigerator (electric only, runs off inverter & batteries). Lots of storage. --Let us build one for you---
FLOOR PLAN BELOW IS OF THE TRAILER DESCRIBED & PICTURED ABOVE.
The blue & white trailer
pictured above is a 32' 3 horse slant with mid tack and living
quarters.
<<Trailer at left is 26'
long, 7' wide, 3 horse, the raised roof is only over the bed
& closet area.
With our Safety Pen™
Corrals built right in, your horse will rest as comfortably as
you do.
This floor plan depicts
the 26' trailer above. It has twin beds and a closet
across the nose.
Is is just an example of something
different we can do. We have made identical trailers with a queen
side bed in the nose. The interior photos show a trailer set up
for a king size bed at the nose, with a closet & loveseat
also in the upper section. (our most popular set-up) The rest of
the trailer is laid out the same.
The beauty of custom building is that we can alter our plans to
suit your needs. With some companies, "custom" only
means that you have a choice of THEIR floor plans!
Floor Plan for a four horse trailer with mid tack & 13 ' living quarter
Overall length, 34'
on the floor, plus 8'-6" gooseneck OUTSIDE trailer
dimensions.
Trailer Specifications
8000# torsion axles, (Oil Bath) 5 Heavy Duty wheels & 18
ply rated (load range J) tires Rear rubber bumper
Of course brakes both axles, safety chains, breakaway brake
switch DOT required lighting & reflective tape
2" treated wood floor, (separate sections under horses,
mid-tack & LQ) Insulated floor in LQ
Mighty Lite mats in horse compartment floor & partway up
walls, and floor of tackroom
Drop Down windows w/drop down safety bars, both sides of trailer.
Slider windows both rear doors Escape door in front of front
horse.
2 Safety Pen ™ Corrals built in, with 4' wide gates for
each corral.
Mid Tack with built in saddle rack, doors into bathroom and horse
compartment
Camper door (with screen door) in Living Quarters
Living Quarters insulated and paneled in knotty pine. Carpeted
Floors Upholstered cushions, booth & loveseat
100 gal water, 12 v pump, propane water heater. 36" x
36" shower, stool, 2 - 35 gallon holding tanks Frost-free
hydrant outside/front trailer
Catalytic propane heater Room type Air Conditioner
11 cubic foot electric refrigerator, microwave, propane cook top,
(range with oven if you prefer) & kitchen sink
6 golf car batteries, 1200 watt inverter, 4000 watt portable
generator
7 coat acrylic enamel (automotive) paint job
All joints seam sealed to eliminate rust.
20 foot awning with center rafter
Price for this trailer as per specs and drawing: $50,000
Since all of our trailers are custom built and individually
prices, changes can be made & priced accordingly.
Our folding steps can be padlocked in the
upright position. This will secure your tackroom while traveling,
in addition to the locking door handle!
Having a built
in hay box provides room for easy access to 4-6 bales of hay or
grain tubs, feed & water buckets, etc. We put access doors on
BOTH sides of the trailer. This
also increases the "upstairs" bed area by 2'.
We
realize many people prefer a motor home, or pickup camper. CIW
Trailers can design a bumper pull trailer to fit your needs, too.
These can also include storage, water tanks, etc..our Safety
Pen™ Corrals, hay

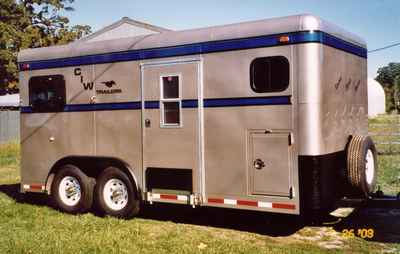

<<Three horse with front tack.
The walk in tack
is the same in this 3 Horse Bumper Pull as our gooseneck
mid-tack.
This one has a hay storage box in the nose. Top hinged door opens
from the inside for easy loading. There is another outside access
door from the side (in your Safety Pen™ Corral!) To the
left of the entry door is a built in closet with shelves. Perfect
for brushes, grooming supplies, etc.
<< 2003 2 horse with front tack/dressing room.
<<Photo at left shows a "Packed" mid tack.
Photo Below (left)
is of our rear compartment that can be a tack room. In this case
it is the "power room" complete with a DC to AC power
inverter, 4 golf car batteries, & a 4000 watt Onan Portable
Generator.
at right>>>
Inside the horse compartment.
